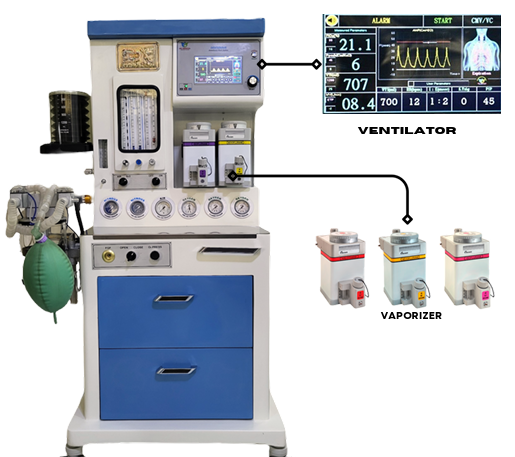

Anaesthesia Workstation
Anaesthesia Workstation
The Anaesthesia Workstation from RD INTERNATIONAL is a state-of-the-art anaesthesia delivery system designed to provide precision, safety, and reliability during surgical procedures. Built with advanced technology and intelligent monitoring features, it is suitable for both adult and pediatric patients in hospitals, operation theatres, surgical centers, and healthcare institutions.
The workstation combines an integrated circle absorber system, advanced ventilator, high-resolution touchscreen display, precision flowmeter assembly, and comprehensive patient monitoring into one compact unit. Designed to meet modern clinical requirements, it ensures accurate anaesthetic gas delivery, effective ventilation, and enhanced patient safety throughout the procedure.
Manufactured with a durable high-strength ABS enclosure and equipped with multiple safety features, the workstation delivers dependable performance while simplifying operation for anaesthesiologists and healthcare professionals.
Key Features
- Suitable for Adult & Pediatric Patients
- Integrated Circle Absorber System with APL Valve
- Pneumatically Driven & Electronically Controlled Ventilator
- Semi-Open, Semi-Closed & Closed Breathing Systems
- 10.1-inch High-Resolution LCD Display
- Multiple Ventilation Modes (VCV, SIMV, AC, BAG & Standby)
- Dual Vaporizer Mounting with Selectatec System
- Real-Time Monitoring of Pressure, Respiratory Rate, Tidal Volume & Compliance
- Intelligent Alarm System for Enhanced Patient Safety
- Up to 180 Minutes Battery Backup
- Compact, Durable & Easy-to-Operate Design
- High-Strength ABS Body Construction
- Reliable Performance with Low Maintenance
Circle Absorber System
| Specification | Details |
|---|---|
| System Type | Integrated Circle Absorber with APL Valve |
| CO₂ Absorber Volume | 2 L Large-Capacity Canister |
| Mode Selection | Single Switch for Bag/Vent Operation |
| Bellows Change | No Bellows Change Required for Adult & Pediatric Use |

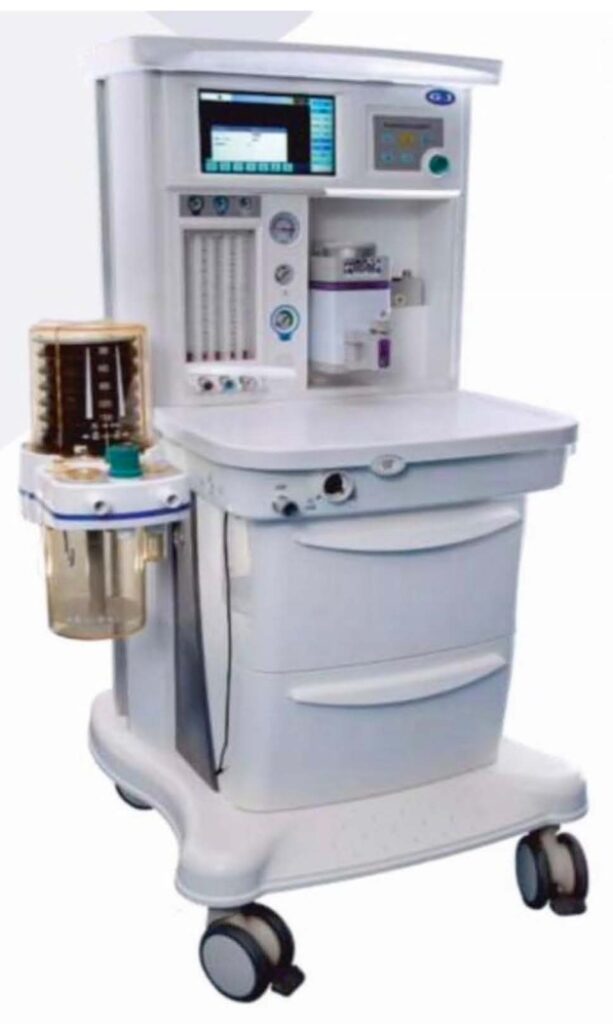

RD AERIES 500
AERIES 500 – High End Anesthesia Workstation
AERIES 500 is a high-end anesthesia workstation with an in-built electrically operated ventilator, designed for safe and precise anesthesia delivery. It features a rust-proof fibre body, two smooth-sliding drawers, antistatic large castor wheels with front brakes, and provision for mounting two vaporizers.
Anesthesia Ventilator
7″ Touch Screen Display
Ventilation Modes: CMV/VC, CMV/PC, ACV/VC, ACV/PC, SIMV/VC, SIMV/PC & Manual
Tidal Volume: 20–1500 ml
Respiratory Rate: 1–60 bpm
I:E Ratio: 1:9 to 4:1
Peak Inspiratory Pressure (PIP): 0–60 cmH₂O
Battery Backup: Up to 3 Hours
Power Supply: AC 220V
Alarms: High/Low Pressure, Patient Disconnect, High/Low Tidal Volume, FiO₂ Failure/Low FiO₂ & Gas Source Failure
