Suction Machine
Suction Apparatus 0.25HP (SE-25)
Technical Specifications
Reliable Medical Suction Apparatus for Efficient Clinical Procedures

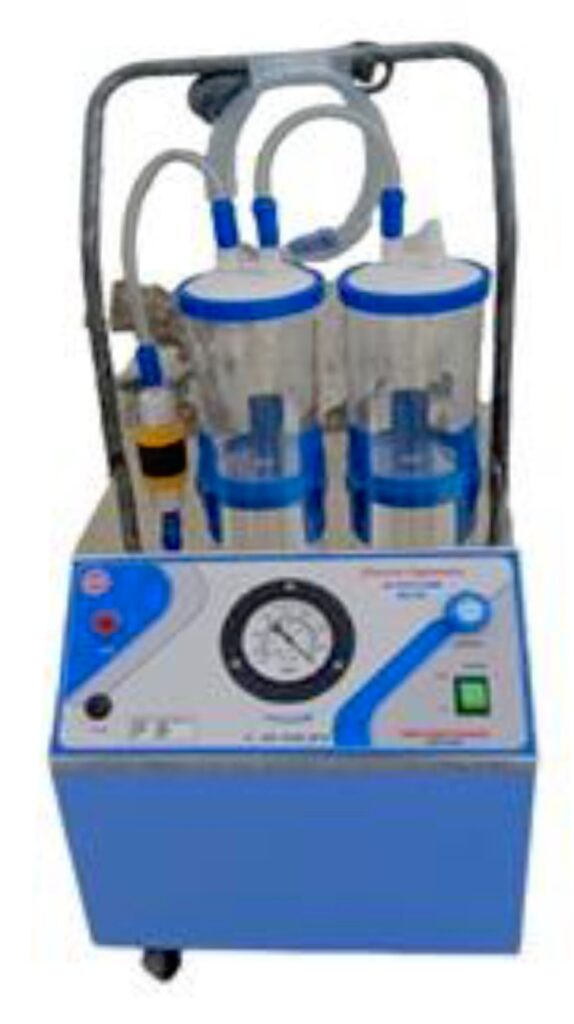

The SE-25 Suction Machine from RD INTERNATIONAL is a high-performance medical suction apparatus designed for hospitals, clinics, operation theatres, emergency rooms, and healthcare facilities. Built with a robust MS body and stainless-steel top, it delivers reliable suction performance for a wide range of medical procedures.
Equipped with an oil-immersed vacuum pump, dual collection jars, precision vacuum control, and an overflow protection system, the SE-25 ensures safe, efficient, and uninterrupted operation. Its trolley-mounted design with swivel castors offers excellent mobility, making it ideal for routine and emergency suction applications.
Key Features
- High-performance Oil-Immersed Vacuum Pump
- Portable Trolley Model with 4 Swivel Castors
- Heavy-Duty MS Body with Stainless Steel Top
- Dual Collection Jars for Continuous Operation
- Precision Vacuum Gauge & Vacuum Control Knob
- Overflow Cut-Off Protection System
- Easy to Operate & Maintain
- Suitable for General Medical Suction Procedures
Description
- Versatile trolley model with 4 swivel castors for easy movement.
- Main body constructed from M.S. sheet with S.S. top fitted with handle.
- D.C. outlet socket provided for foot pedal connection.
- Equipped with vacuum gauge, ON/OFF switch with indicator, and vacuum control knob.
- Overflow cut-off device fitted in one bottle for added safety.
- Supplied with suction tubing for immediate use.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SE-25 |
| Vacuum Capacity | -760 mmHg ±10 |
| Flow Rate | Approx. 22–25 Litres/Minute |
| Collection Jars | 2 × 1.5 Litre Graduated Glass Jars with Rubber Lids |
| Vacuum Gauge | 0–760 mmHg |
| Pump Type | Oil-Immersed Vacuum Pump |
| Power Supply | 220–240V AC, 50Hz |
